系列 Series
|
|
|
|
A27H型适用于工作温度≤200℃的水、空气、蒸气等介质的设备或管路上。A27Y适用于工作温度≤200℃有腐蚀性介质的设备或管路上，作为超压保护装置。
|
|
A27H type are used for the equipment and pipeline of water, air, steam etc. medium what the working temperature areless than 200 . A27Y type are used for the equipment and pipeline of the quality with corrode me-dium what the workingtempe-rature are less than 200 . Take for extra pressure devices.
|
|

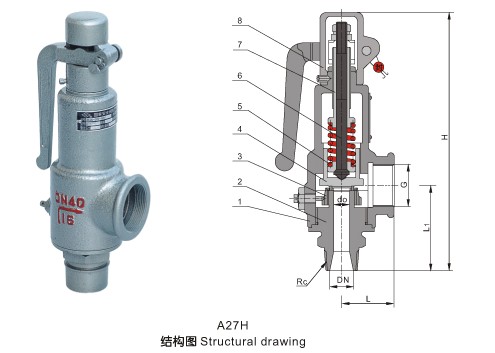

主要零部件材料 Explanation of materials for main parts
|
|
NO.
|
Name of part
|
A27H Materials
|
A27W-P Materials
|
A27W-RMaterials
|
|
1
|
Body
|
HT350
|
ZG1Cr18Ni9Ti
|
ZG1Cr18Ni12Mo2Ti
|
|
2
|
Nozzle
|
35
|
ZG1Cr18Ni9Ti
|
ZG1Cr18Ni12Mo2Ti
|
|
3
|
Adjusting ring
|
2Cr13
|
1Cr18Ni9Ti
|
1Cr18Ni12Mo2Ti
|
|
4
|
Disc
|
2Cr13
|
1Cr18Ni9Ti
|
1Cr18Ni12Mo2Ti
|
|
5
|
Spring
|
50CrVA
|
50CrVACoated Teflon
|
50CrVACoated Teflon
|
|
6
|
Stem
|
2Cr13
|
2Cr13
|
1Cr18Ni9Ti
|
|
7
|
Adjusting bolt
|
45
|
2Cr13
|
1Cr18Ni9Ti
|
|
8
|
Cap
|
ZG200-400
|
ZG200-400
|
1Cr18Ni9Ti
|
|
|
Sealing surface of material
|
D507 Depositing D507
|
CoDepositing stellite
|
|
10
|
Adjusting nut
|
Q235-A
|
2Cr13
|
1Cr18Ni12Mo2Ti
|
|
|
Sealing surface of material
|
"Y" CoDepositing stellite, "H" D507 Depositing D507, "W"body
|
