双联弹簧式安全阀(A37H-A43H)

————

作者：大唐阀门发布时间：13/03/21 来源：上海大唐阀门

系列 Series
A38Y-16C/25/40A43H-16C/25/40A37H-16C/25/40
本阀门适用于工作温度≤350℃的蒸汽、水等介质的设备和管路上。作为超压保护装置。连接法兰标准按JB/T……-94的系列1。
This safety valves are used for the equipment and pipeline of the steam, water etc. medium what the working temperature are less than 350 . Take for extra pressure protection devices.Flange connecting dimensions of comply with Standard series one of JB/T -94.
主要零部件材料 Explanation of materials for main parts
A38Y, A43H, A37H safety valve, except the three-ways style (material WCB), the materials of other parts is the same as A47H, A48Y type spring loaded type safety valve.
A38Y A38Y Type (DN)	A48Y Relevant A48Y Type (DN)	A43Y A43Y Type (DN)	A47Y Relevant A47Y Type (DN)	A37Y A37Y Type (DN)	A47Y Relevant A47Y Type (DN)
50	322	50	322	50	322
80	502	80	502	80	652
100	652	100	802	100	802
150	1002	125	1002	125	1002
		150	1252	150	1252

A38Y、A43H、A37H型双联安全阀是在Y型接头上装设两个同样规格的A48Y或A47H型安全阀而构成，其公称通径系列指Y型接头进口通径，其组合情况如下表：
A38Y,A43H, A37Htype twin safety valve is composed oftwo A48Y or A47Y type safety valves with the same specifications. Which are fixed on a Y-shaped joint. The nominaldiameter is the inlet diameter ofthe Y-shaped joint. Here is the table to show its combination.

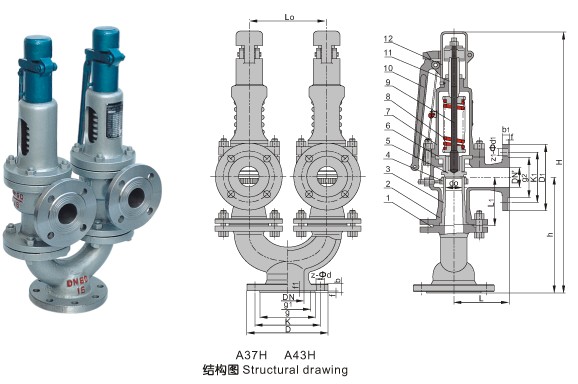

外形尺寸和连接尺寸 Dimensions (mm)
Type	(DN)	do	D	K	g	g1	b	f	f1	Z- d	DN'	D1	k1	g2	b1	f'	Z1-d1	L	L1	L0	h	H
A37H-16C A43H-16C	50	25	165	125	100		20	3		4-18	32	140	100	78	18	2	4-18	115	110	165	235	547
	80	40	200	160	135		20	3		8-18	50	165	125	100	16	3	4-18	135	120	190	285	795
	80	50	200	160	135		20	3		8-18	65	185	145	120	18	3	4-18	140	130	205	310	835
	100	65	220	180	155		22	3		8-18	80	200	160	135	20	3	8-18	160	135	255	355	890
	125	80	250	210	185		22	3		8-18	100	220	180	155	22	3	8-18	170	160	260	410	1,170
	150	100	285	240	210		24	3		8-23	125	250	210	185	22	3	8-18	190	190	275	430	1,240
A37H-25 A43H-25	50	25	165	125	100		20	3		4-18	32	140	100	78	18	2	4-18	115	110	165	235	547
	80	40	200	160	135		22	3		8-18	50	165	125	100	16	3	4-18	135	120	190	285	795
	80	50	200	160	135		22	3		8-18	65	185	145	120	18	3	4-18	140	130	205	310	835
	100	65	230	190	160		24	3		8-23	80	200	160	135	20	3	8-18	160	135	255	355	890
	125	80	270	220	188		28	3		8-26	100	220	180	155	22	3	8-18	170	160	260	410	1,170
	150	100	300	250	218		30	3		8-26	125	250	210	185	22	3	8-18	190	190	275	430	1,240
A37H-40 A43H-40	50	25	165	125	100	88	20	3	4	4-18	32	140	100	78	16	2	4-18	115	110	165	235	547
	80	40	200	160	135	121	22	3	4	8-18	50	165	125	100	16	3	4-18	135	120	190	285	795
	80	50	200	160	135	121	22	3	4	8-18	65	185	145	120	18	3	4-18	140	130	205	310	835
	100	65	235	190	160	150	24	3	4.5	8-23	80	200	160	135	20	3	8-18	160	135	255	355	890
	125	80	270	220	188	176	28	3	4.5	8-26	100	220	180	155	22	3	8-18	170	160	260	410	1,170
	150	100	300	250	218	204	30	3	4.5	8-26	125	250	210	185	22	3	8-18	190	190	275	430	1,240
A38Y-16C	50	20	165	125	100		20	3		4-18	40	150	110	85	16	3	4-18	198	100	165	225	636
	80	32	200	160	135		20	3		8-18	65	185	145	120	20	3	4-18	230	120	190	265	817
	100	40	220	180	155		22	3		8-18	80	200	160	135	20	3	8-18	293	140	265	265	921
	150	80	285	240	210		24	3		8-23	125	250	210	185	22	3	8-18	320	175	250	420	1,097
A38Y-25	50	20	165	125	100		20	3		4-18	40	150	110	85	16	3	4-18	198	100	165	225	636
	80	32	200	160	135		22	3		8-18	65	185	145	120	20	3	4-18	230	120	190	265	817
	100	40	230	190	160		24	3		8-23	80	200	160	135	20	3	8-18	293	140	265	265	921
	150	80	300	250	218		30	3		8-26	125	250	210	185	22	3	8-18	320	175	250	420	1,097
A38Y-40	50	20	165	125	100	88	20	3	4	4-18	40	150	110	85	16	3	4-18	198	100	165	225	636
	80	32	200	160	135	121	22	3	4	8-18	65	185	145	120	20	3	4-18	230	120	190	265	817
	100	40	235	190	160	150	24	3	4.5	8-23	80	200	160	135	20	3	8-18	293	140	265	265	921
	150	80	300	250	218	204	30	3	4.5	8-26	125	250	210	185	22	3	8-18	320	175	250	420	1,097
