弹簧微启式安全阀(A61Y)
————
- 作者:大唐阀门 发布时间:13/03/21 来源:上海大唐阀门
-
SKU:弹簧微启式安全阀(A61Y)Description:系列 SeriesA61-160,A61-320适用于工作温度≤200℃的空气、氨、石油气等介质的设备和管路上,A61Y-160P,A61Y-320P型适用于温度≤200℃有腐蚀性的气体或液体的设备和管路上,作为超压保护装置。A61-160, A61-320 type are used for the equipment and pipeline of the air, ammonia,petr-oleum gas etc.medium what theworking temperature are less than 200 , A61Y-160P , A61Y-320P type are used for the equipment and pi-

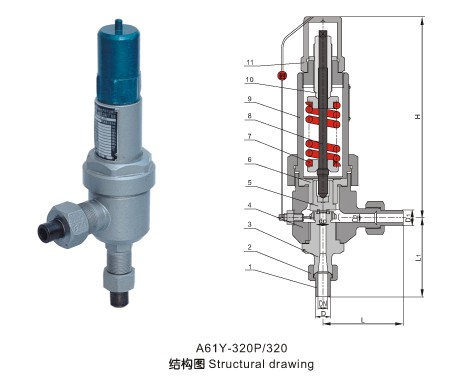

peline of the quality with corrode gas and liquidmedium what the working temperature are lessthan 200 . Take for extra pressureprotection devices.主要零部件材料 Explanation of materials for main partsNO.Name of partA61H-C A61Y-C MaterialsA61Y-P Materials1Union201Cr18Ni9Ti2Union nut351Cr18Ni9Ti3Nozzle2Cr131Cr18Ni9Ti4Body35/35CrMoA1Cr18Ni9Ti5Disc2Cr131Cr18Ni9Ti6Guide2Cr131Cr18Ni9Ti7Spring50CrVA50CrVACoated Teflon8Stem2Cr132Cr139BonnetZG230-4501Cr18Ni9Ti10Adjusting bolt452Cr1311CapZG200-4001Cr18Ni9TiSealing surface of material"Y" CoDepositing stellite, "H" D507 Depositing D507外形尺寸和连接尺寸 Dimensions (mm)Nominal pressure
PN(MPa)Nominal diameter
DN(mm)DimensionsdoDD1D2LL1H106171412115135781582218161151358520102822201151351352512352624160165142106221412115135801582517151151359020103022201151351402512382624160165148
