带散热器弹簧全启式安全阀(A40Y)

————

作者：大唐阀门发布时间：13/03/21 来源：上海大唐阀门

Description:

系列 Series TA40Y-16C/25/40 TA40Y-64/100 TA40Y-16/25/40P TA40Y-64P/100P TA40Y-16/25/40I TA40Y-64/100I

说明 Instruction

TA40-C适用于工作温度≤400℃、TA40Y-I≤450℃的空气、水、氮氢混合气等介质的设备或管路上，TA40Y-P适用于工作温度≤300℃有腐蚀性介质的设备或管路上，作为超压保护装置。
TA40Y-C type are used for the equipment and pipeline of the air, N 2 , H 2 mined gas etc. medium what the working temperature are less than 400℃. TA40Y-P type are used for the equipment and pipeline of the quality with corrode medium what the working temperature are less than 300℃ . Take for extra pressure protedion devices.

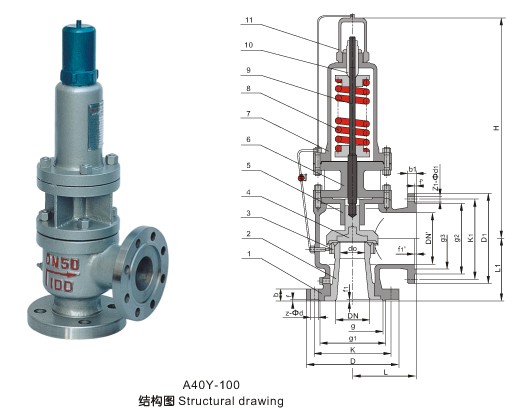

主要零部件材料 Materials for main parts
NO.	Name of part	TA40Y-C Materials	TA40Y-P Materials	TA40Y-I Materials
1	Body	WCB	ZG1Cr18Ni9Ti	ZG1Cr5Mo
2	Nozzle	2Cr13	1Cr18Ni9Ti	1Cr18Ni9Ti
3	Adjusting ring	2Cr13	1Cr18Ni9Ti	1Cr18Ni9Ti
4	Disc	2Cr13	1Cr18Ni9Ti	1Cr18Ni9Ti
5	Guide sleeve	2Cr13	1Cr18Ni9Ti	1Cr18Ni9Ti
6	Radiator	ZG230-450	ZG230-450	ZG230-450
7	Bonnet	ZG230-450	ZG230-450	ZG230-450
8	Spring	50CrVA	50CrVACoated Teflon	50CrVACoated Teflon
9	Stem	2Cr13	1Cr18Ni9Ti	2Cr13
10	Adjusting bolt	45	1Cr18Ni9Ti	2Cr13
11	Cap	ZG200-400	ZG200-400	ZG200-400

外形尺寸和连接尺寸 Dimensions (mm)
Type	(DN)	do	D	K	g	g1	b	f	f1	Z- d	DN'	D1	k1	g3	g2	b1	f'	f1'	Z1-d1	L	L1	H
TA40Y-16C TA40Y-16P TA40Y-16I	20	15	105	75		55	16	2		4-14	25	115	85		65	16	2		4-14	110	95	518
	25	16	115	85		65	16	2		4-14	32	140	100		78	18	2		4-18	110	95	518
	32	20	140	100		78	18	2		4-18	40	150	110		85	18	3		4-18	115	100	518
	40	25	150	110		85	18	3		4-18	50	165	125		100	20	3		4-18	120	110	579
	50	32	165	125		100	20	3		4-18	65	185	145		120	20	3		4-18	135	120	639
	65	40	185	145		120	20	3		4-18	80	200	160		135	20	3		8-18	160	140	671
	80	50	200	160		135	20	3		8-18	100	220	180		155	22	3		8-18	170	135	676
	100	65	220	180		155	22	3		8-18	125	250	210		185	22	3		8-18	195	175	787
	125	80	250	210		185	22	3		8-18	150	285	240		210	24	3		8-23	210	190	977
	150	100	285	240		210	24	3		8-23	175	310	270		240	26	3		8-23	255	230	1,035
	200	125	340	295		265	26	3		12-23	250	405	355		320	30	3		12-26	300	260	1,193
A48Y-25 A44Y-25 A44Y-25P A44Y-25R	20	15	105	75		55	16	2		4-14	25	115	85		65	16	2		4-14	110	95	518
	25	16	115	85		65	16	2		4-14	32	140	100		78	18	2		4-18	110	95	518
	32	20	140	100		78	18	2		4-18	40	150	110		85	18	3		4-18	115	100	518
	40	25	150	110		85	18	3		4-18	50	165	125		100	20	3		4-18	120	110	579
	50	32	165	125		100	20	3		4-18	65	185	145		120	20	3		4-18	135	120	639
	65	40	185	145		120	22	3		8-18	80	200	160		135	20	3		8-18	160	140	671
	80	50	200	160		135	22	3		8-18	100	220	180		155	22	3		8-18	170	135	676
	100	65	230	190		160	24	3		8-23	125	250	210		185	22	3		8-18	195	175	787
	125	80	270	220		188	28	3		8-26	150	285	240		210	24	3		8-23	210	190	977
	150	100	300	250		218	30	3		8-26	175	310	270		240	26	3		8-23	255	230	1,035
	200	125	360	310		278	34	3		12-26	250	405	355		320	30	3		12-26	300	260	1,193
TA40Y-25 TA40Y-25P TA40Y-25I	20	15	105	75		55	16	2	4	4-14	25	115	85		65	16	2		4-14	110	95	518
	25	16	115	85		65	16	2	4	4-14	32	140	100		78	18	2		4-18	110	95	518
	32	20	140	100		78	18	2	4	4-18	40	150	110		85	18	3		4-18	115	100	518
	40	25	150	110		85	18	3	4	4-18	50	165	125		100	20	3		4-18	120	110	579
	50	32	165	125		100	20	3	4	4-18	65	185	145		120	20	3		4-18	135	120	639
	65	40	185	145		120	22	3	4	8-18	80	200	160		135	20	3		8-18	160	140	671
	80	50	200	160		135	22	3	4	8-18	100	220	180		155	22	3		8-18	170	135	676
	100	65	235	190		160	24	3	5	8-23	125	250	210		185	22	3		8-18	195	175	787
	125	80	270	220		188	28	3	5	8-26	150	285	240		210	24	3		8-23	210	190	977
	150	100	300	250		218	30	3	5	8-26	175	310	270		240	26	3		8-23	255	230	1,035
TA40Y-40 TA40Y-40P TA40Y-40I	20	10	125	90	51	68	22	2	4	4-18	25	115	85	58	65	16	2	4	4-14	96	85	384
	25	16	140	100	58	78	22	2	4	4-18	32	140	100	66	78	18	2	4	4-18	110	100	384
	32	20	155	110	66	82	24	2	4	4-23	40	150	110	76	85	18	3	4	4-18	130	110	396
	40	25	170	125	76	95	24	3	4	4-23	50	165	125	88	100	20	3	4	4-18	130	120	426
	50	32	180	135	88	105	26	3	4	4-23	65	185	145	110	120	22	3	4	8-18	135	130	504
	65	40	205	160	110	130	28	3	4.0	8-23	80	200	160	121	135	22	3	4	8-18	175	160	613
	80	50	215	170	121	140	30	3	4.0	8-23	100	235	190	150	160	24	3	5	8-23	175	160	603
	100	65	250	200	150	168	32	3	4.5	8-26	125	270	220	176	188	28	3	5	8-25	195	195	813
	150	100	345	280	176	240	38	3	4.5	8-34	200	375	320	260	282	38	3	5	12-30	280	265	1,064
TA40Y-100 TA40Y-100P TA40Y-100I	20	10	125	90	204	68	22	2	4.0	4-18	25	115	85	58	65	16	2	4	4-14	96	85	384
	25	16	140	100	51	78	24	2	4.0	4-18	32	140	100	66	78	18	2	4	4-18	110	100	384
	32	20	155	110	58	82	24	2	4	4-23	40	150	110	76	85	18	3	4	4-18	130	110	396
	40	25	170	125	66	95	26	3	4	4-23	50	165	125	88	100	20	3	4	4-18	130	120	426
	50	32	195	145	76	112	28	3	4	4-26	65	185	145	110	120	22	3	4	8-18	135	130	504
	65	40	220	170	88	138	32	3	4	8-26	80	200	160	121	135	22	3	4	8-18	175	160	613
	80	50	230	180	110	148	34	3	4	8-26	100	235	190	150	160	24	3	4	8-23	175	160	603
	100	65	265	210	121	172	38	3	5	8-30	125	270	220	176	188	28	3	5	8-25	195	195	813
	150	100	355	290	150	250	46	3	5	12-34	200	375	320	260	282	38	3	5	12-30	280	265	1,064
