GYA系列液压安全阀
————
- 作者:大唐阀门 发布时间:13/03/21 来源:上海大唐阀门
-

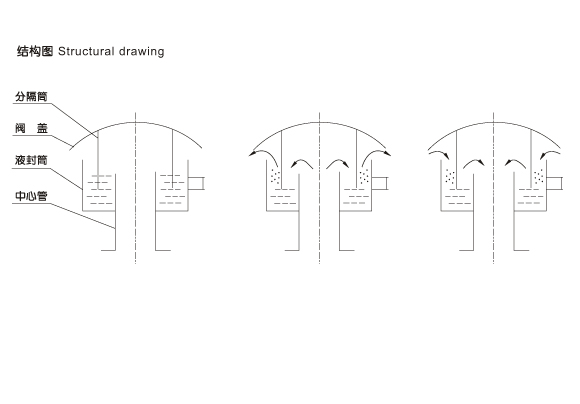

GYA系列用途 Usage1、液压式安全阀是(活瓣式)呼吸阀的安全备用设备,它的吸气和呼气的动作压力略高于(活瓣式)呼吸阀,在呼吸阀一旦失灵或在冬季其活瓣冻结时,液压安全阀的液封即被破坏从而保护油罐免遭破坏。
2、液压安全阀装于油罐顶部与呼吸阀配合使用。
3、控制压力:+56毫米水柱至-50毫米水柱。1. Liquid-pressure style safety valve isa assistant equipmentof the breathing valve (moving discstyle), the active pressure of aspi-ration and expiration is higher than breathing valve (moving disc style), as upon once the breathing valve does not work in winter,themoving disc willbe frozen, the liquid seal ofthe liquid-pressure style safety valve can be broken forprotecting the oiltank.
2. Liquid-pressure safety valve will be installed in top of oil tank and assorted used with breathing valve.

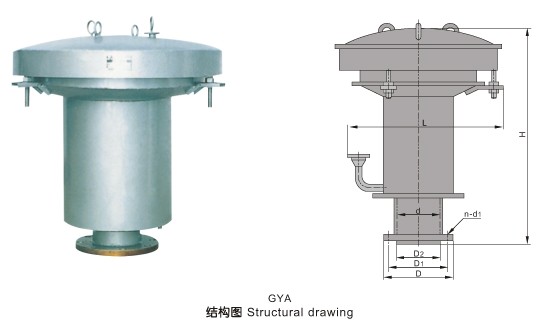

3. The controlpressure: +56mm watercolumn to -50mm water column.外形尺寸和连接尺寸 Dimensions (mm)TypeSpecificationDimensions (mm)Weight
(kg)dDD1D2n-d1LH80851851501254- 18376424381001052051701454- 18500605421501482602252008- 18650705662002103152802558- 189007559725026437033531012- 181,050885140
